Automatic Palletizing Robot Carton Box Stacking Machine
A full-automatic palletizing robot, also known as an automated palletizer or robotic palletizer, is a type of industrial robot designed to automatically stack and arrange products or items onto pallets.
- Load range: 15-180kg
Spanning range: 1520-3100mm

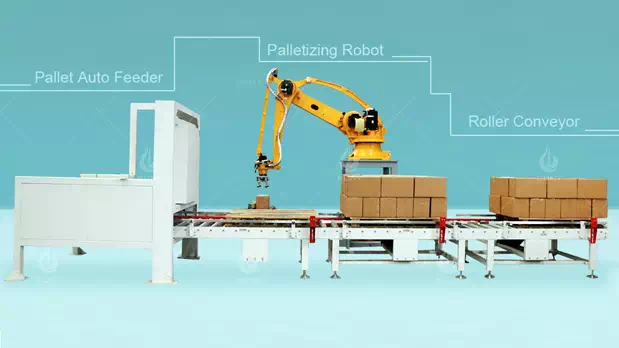

Pallet Auto Feeder: This component is responsible for feeding empty pallets to the palletizer, which can be distributed individually or loaded in stacks.
Palletizing Robot: Products are placed on pallets by robotic arms. The equipment is securely mounted on the structure to ensure stability during operation.
Roller Conveyor: An input conveyor that can deliver products to the palletizer and an output conveyor that carries finished pallets away from the palletizer. Conveyor systems are usually integrated into the structure with appropriate supports and rails.
The advantages of automatic palletizers are to improve production efficiency, improve product quality, reduce labor costs and provide safety. It quickly and accurately stacks products on pallets, eliminating the uncertainty and fatigue of manual handling while reducing the risk of human error and product damage. Automatic palletizers can also accommodate different product sizes and stacking patterns, providing flexibility and line adjustability. In addition, it can be integrated with other automation systems to achieve a seamless production process and improve overall production efficiency.

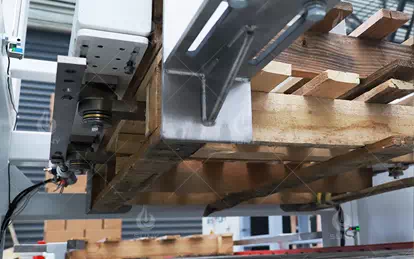

Pallet Auto Feeder

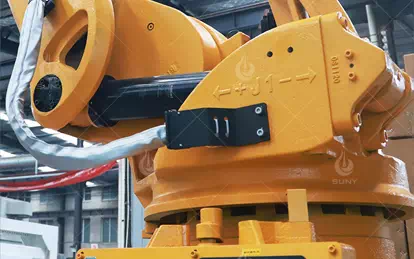

Four-axis mechanical arm

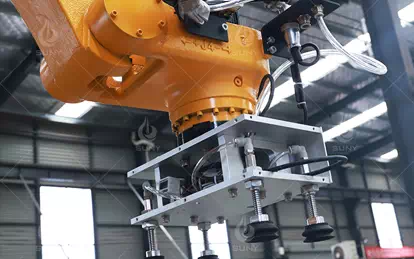

J4 Motion axis

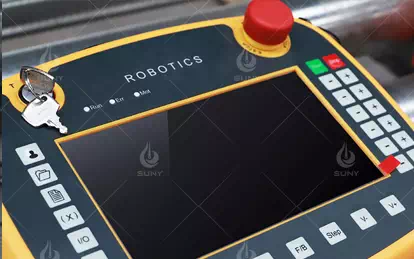

Programming pendant
High Degree of Automation
Box-sealing Up and Down
| Palletizing Robot | ER120-2400-PL(ABB Or Other Brand) |
|---|---|
| Load Weight | 120KG |
| Robot Armspan | 2400MM |
| Accurate Positioning | 士0.2mm |
| Power | 7.5KW |
| Stacking Speed | MAX.700Times/Hour(According to stacking type) |
| Stacking Height | MAX.2200mm |
| Pallet Size | MAX.Length:1200mm MAX.Width:1200mm |
| Stocked Pallet Quantity | MAX.10 |
| Application | Carton Box or Other |
| Suitable for non-woven fabric | 45-50g spunlace nonwoven |
| Width of raw material | 60mm |
