Pull-out Facial Cotton Tissue Making Machine

Model: SYCT-150, Pull-out Type, Fully Automatic

This pull-out automatic facial tissue machine adopt vacuum suction and automatic fold counting function, with such advantages as high speed, neatly folding, and easy to operate etc.

  • Speed: ≤150 m/min

  • Folding type: continuous operation, wind suction folding

  • Number of folds: ≤12 fold/min

Request A Quote Now
PHOTOS OF PULL-OUT COTTON TISSUE MACHINE

Complete series of removable pull-out type facial tissue folding machine is used to fold facial tissues into chain-type cross-folded rectangular pieces after the base paper is cut with a knife roll; the folded facial tissue can be pulled out one by one by each pulling, so that the facial tissue can be used conveniently and kept clean.

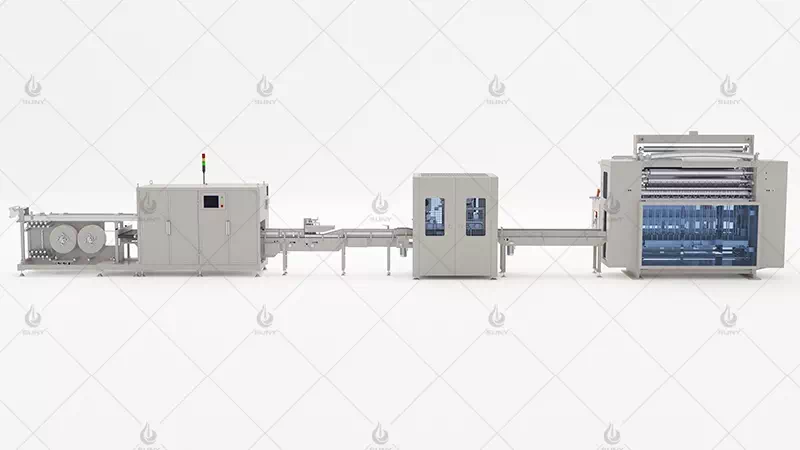

Pull-out Facial Cotton Tissue Making Machine
Pull-out Facial Cotton Tissue Machine
FINAL PRODUCT

The Pull-out facial tissue making machine is used to produce soft cotton towels, face cleaning towels, etc.Normally size based on 200mm, the width of soft cotton towels can be customized,adjustable by log saw setting.Size can be customized accordingly to local market.

Cotton tissue 100pcs
100 Pcs

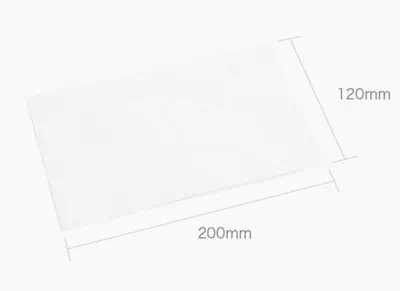

Cotton tissue 120

200*120 mm

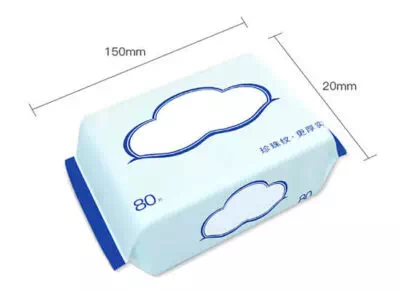

Pure cotton tissue 80pcs
80 Pcs

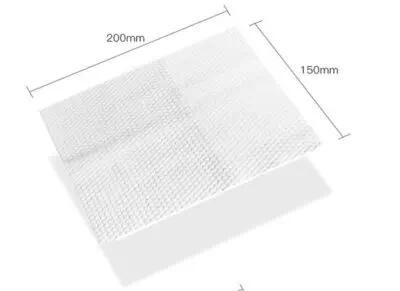

Pure cotton tissue 150mm

200*150 mm

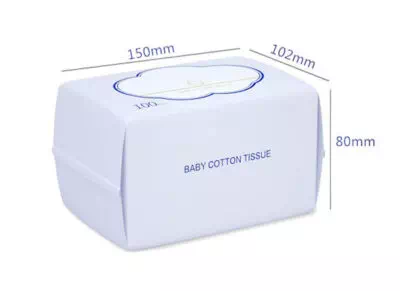

Baby cotton tissue 100pcs
100 Pcs

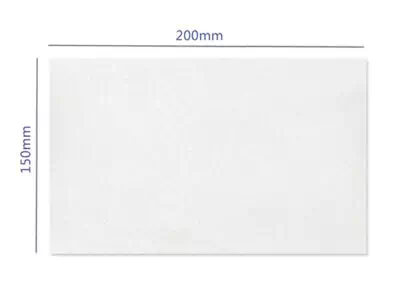

Baby cotton tissue 150

200*150 mm

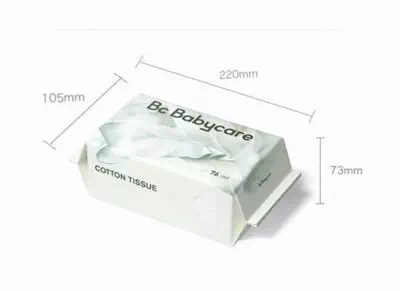

Babycare cotton tissue 76pcs
76 Pcs

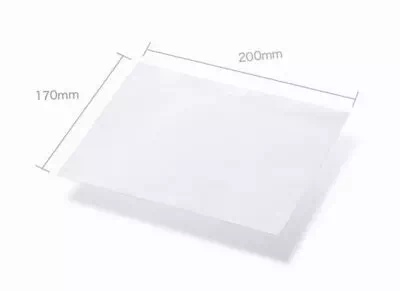

Babycare cotton tissue 170

200*170 mm

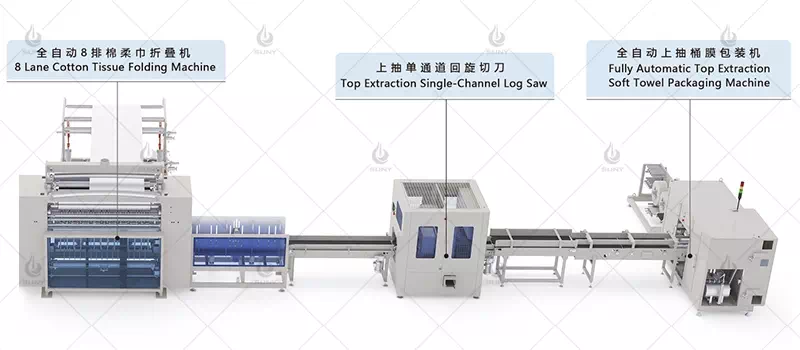

EQUIPMENT STRUCTURE

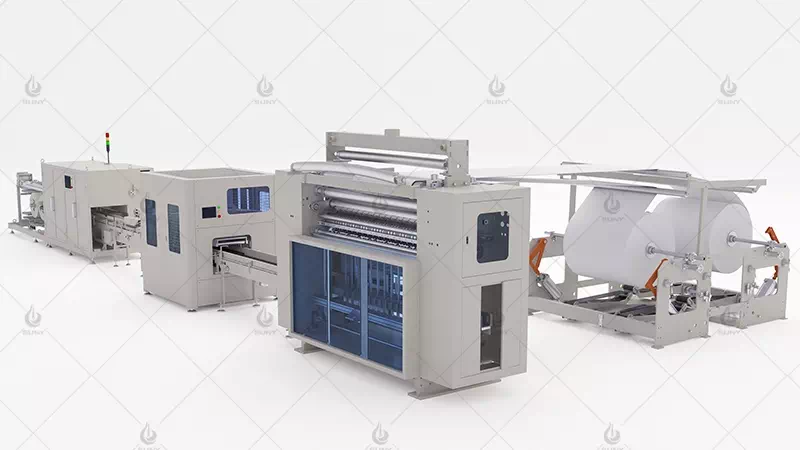

Cotton Tissue Machine Diagram

The maximum speed of the whole machine is 120m/min.Stable running speed about 60-100 m/min, *according to the raw materials.

Two or four sets of coiling racks for optional (cost effective and efficiently).Fully automatic production line, so as to eliminate the pollution of paper sources and truly meet hygiene standards.

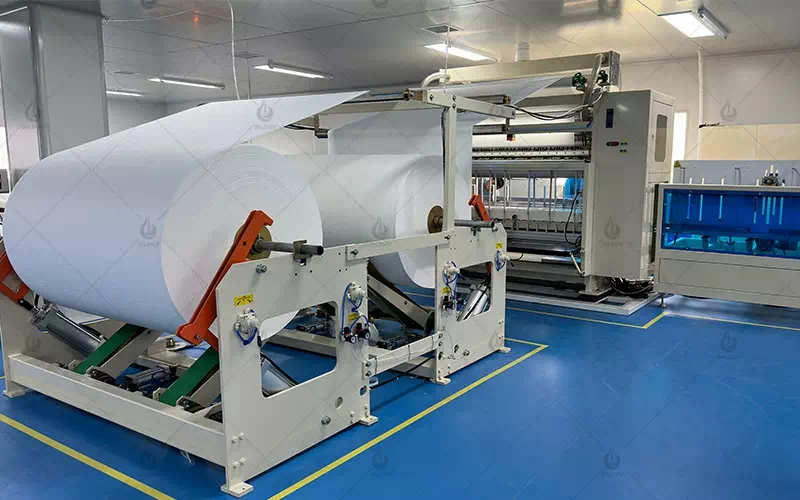

Cotton Tissue Folding Machine
Cotton Tissue Folding Machine

This cotton tissue folding machine adopts large screen true color man-machine interface operation, PLC programming control, Chinese and English one-button switching independent language environment operation.

Designing Speed ≤150 m/min
Number of folds ≤12 fold/min
Raw tissue width ≤1500 mm
Raw tissue diameter 1500 mm
Folding type Continuous operation, wind suction folding
Get a Quote

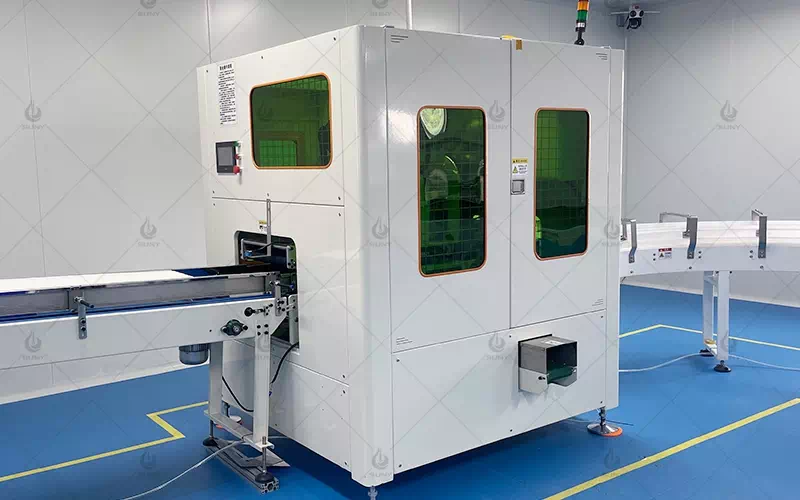

Cotton Tissue Cutting Machine
Cotton Tissue Cutting Machine

Single channel log saw or two lines for optional, cutting the folded non-woven fabric into finished products, to make sure neat and elegant enough before packing. Each channel can be cut with differentlength and thickness

Channel Number 1,2,3,4 modules
Cutting Speed ≤150/min
Ensure Cutting Accuracy + / – 1 mm
Feed Product Length ≤5600 mm
Cut Length 85-250 mm
Tissue Cutting Width 60-105mm
Tissue Cutting Height 50-110 mm
Get a Quote

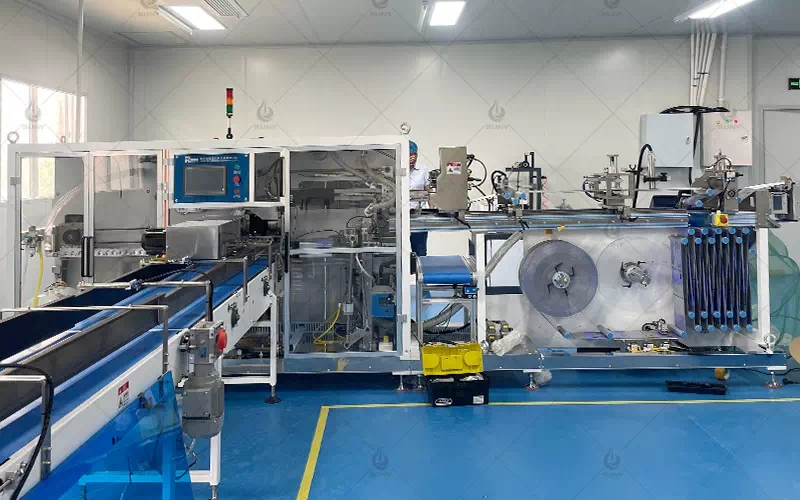

Cotton Tissue Packing Machine
Cotton Tissue Packing Machine

The full-automatic cotton tissue packaging machine packs the cut fabric towels into bags and seals them, and outputs the finished products.

Maximum Roll Film Diameter φ600mm
Cylinder Membrane Papercore φ76-80mm
Film Thickness 0.03mm—-0.06mm
Working Speed 50-60 bags/min
Overall dimension (L*W*H)7000*1000*2200mm
Packing Size L: 100-200 mm(PEmembrane), 100mm -150 mm(composite membrane);W: 70-110 mm; H: 30-100 mm
Power 15kw
Get a Quote
SYSTEM COMPOSITION

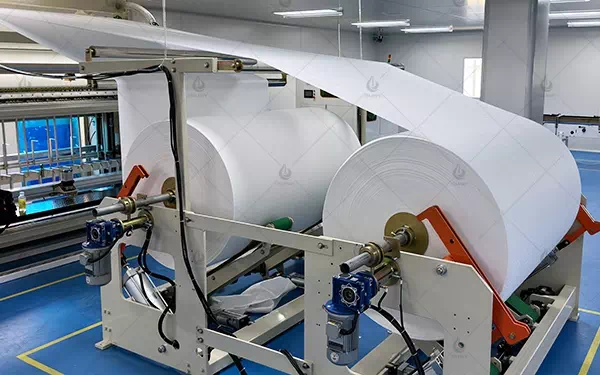

Feeding Structure
Feeding Structure

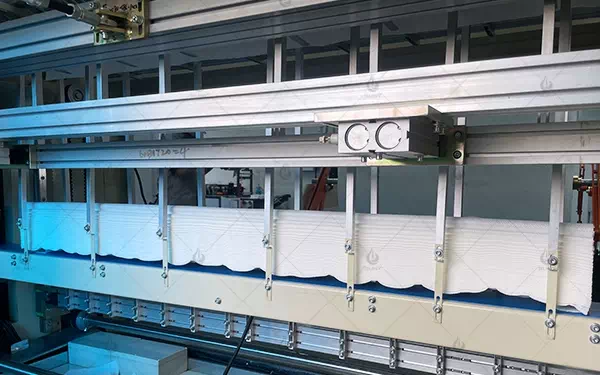

Folding Cutting Structure
Folding Cutting Structure

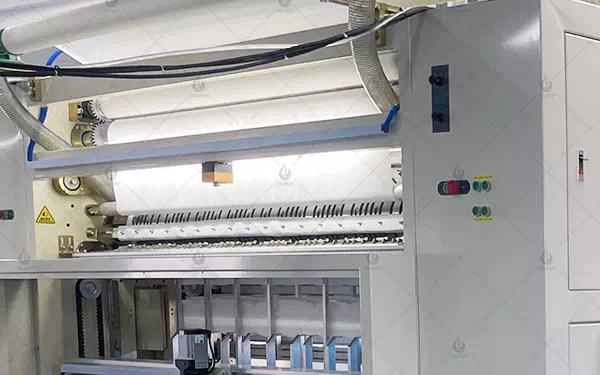

Vacuum Egative Pressure
Vacuum Egative Pressure

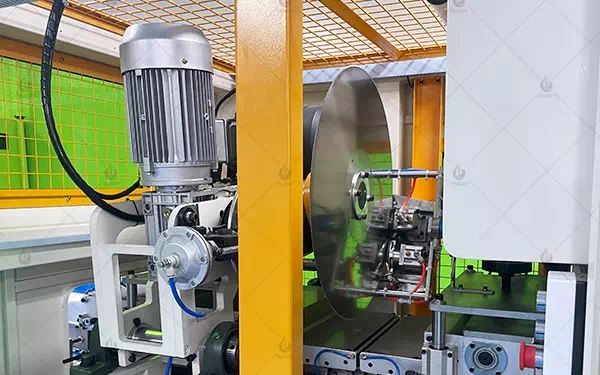

Cutting System
Cutting System

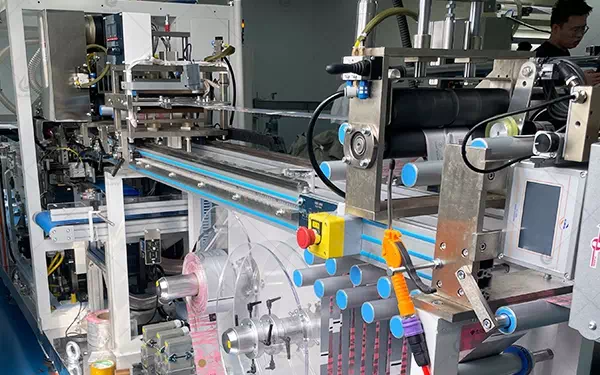

Packing Structure
Packing Structure

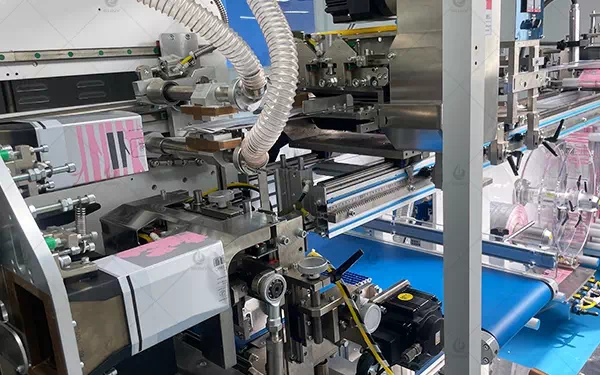

Sealing Structure
Sealing Structure
Our Customer Tissue Making Machine Work Site
