5-30 Pcs/Bag Portable Wet Wipes Production Line

Model: SY-535, 5-30 Pcs/Bag(Switchable), Fully Automatic

The full automatic portable wet wipe making machine is easy and function is very steady, and is an ideal equipment for the production of small bags ( 5-30 pcs/bag ) of wet wipes.

  • Packaging speed: 1400-1500 tablets/min or 90 packs/min

  • Packaging size: Length(150-230)*Width(100-120)*Height(20-80)mm

  • Folding Method: N type single pumping, C type single pumping

Request A Quote Now
PHOTOS OF SY-535 PORTABLE WET WIPES MAKING MACHINE

SY-535 portable wet wipes machine is capable of producing pocket sized wet wipes in a broad range of product dimensions at the speed of 1400pcs/min on converting machine and 90packs/min on packaging machine.

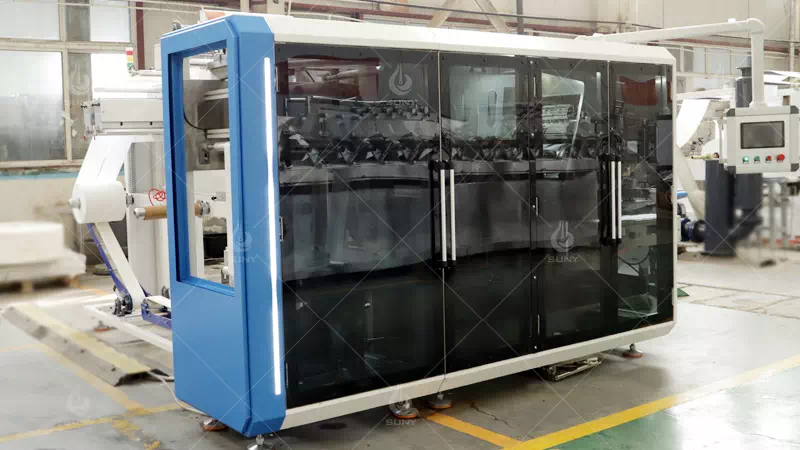

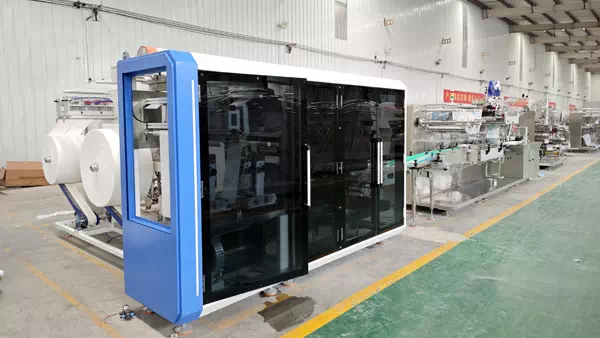

SY-535 Portable Wet Wipes Making Machine

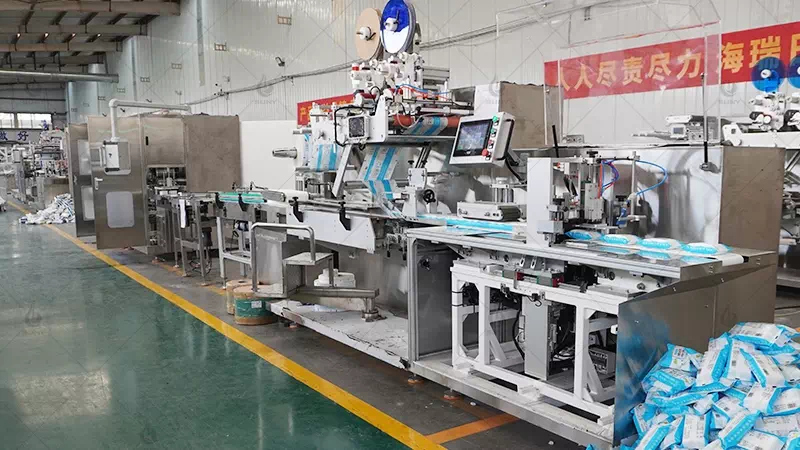

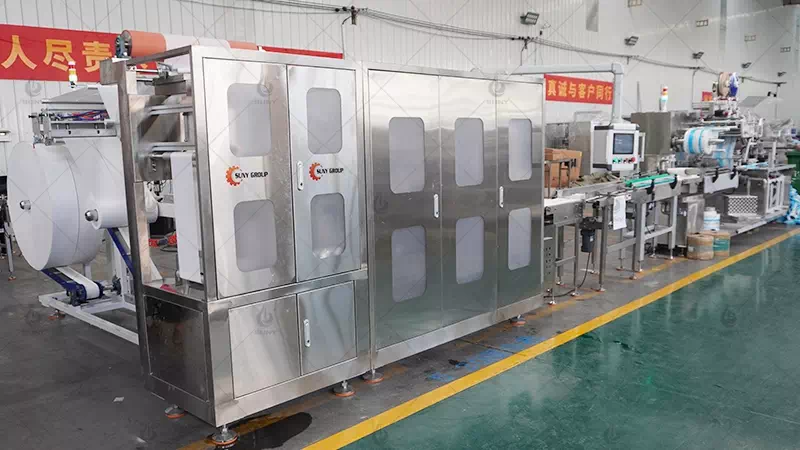

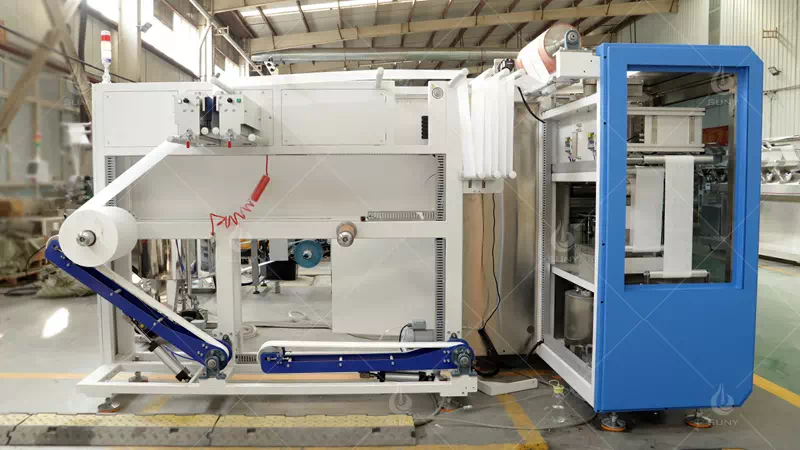

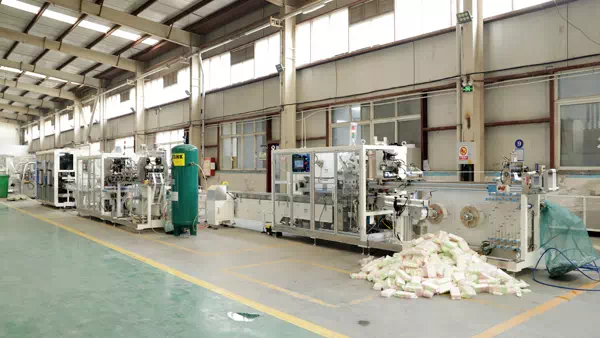

SY-535 Portable Wet Wipes Production Line

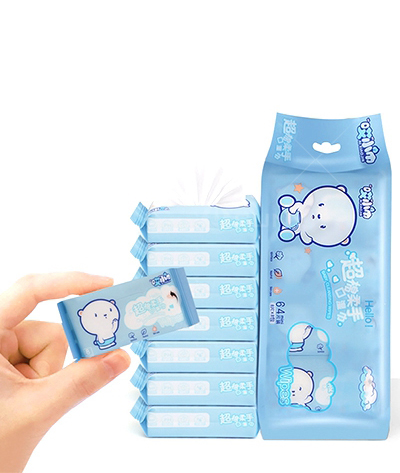

FINAL PRODUCT

Package Size: Length(150-230)*Width(100-120)*Height(20-80)mm
Folding Method: N type single pumping, C type single pumping
SY-535 wet wipes machine is designed to make a vast variety of wet wipes in a pack of 5-30 sheets such as mini wipes, pocket wipes, portable baby wipes, antibacterial wet wipes, sanitizing wet wipes, etc.

10 Pcsbag Wet Wipes
10 Pcsbag Wet Wipes

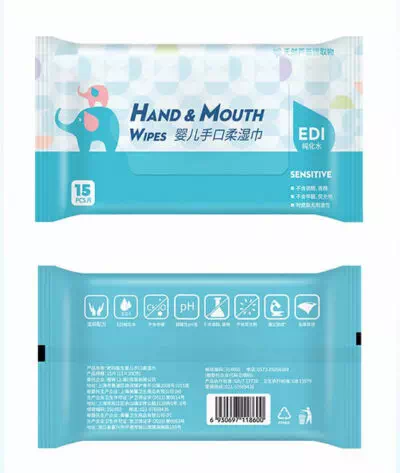

15 Pcsbag Wet Wipes
15 Pcsbag Wet Wipes

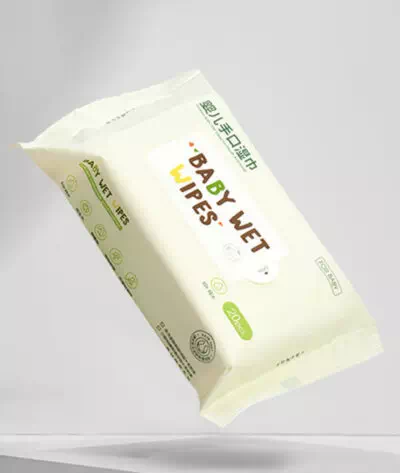

20 Pcsbag Wet Wipes
20 Pcsbag Wet Wipes
25 Pcsbag Wet Wipes
25 Pcsbag Wet Wipes
EQUIPMENT LAYOUT

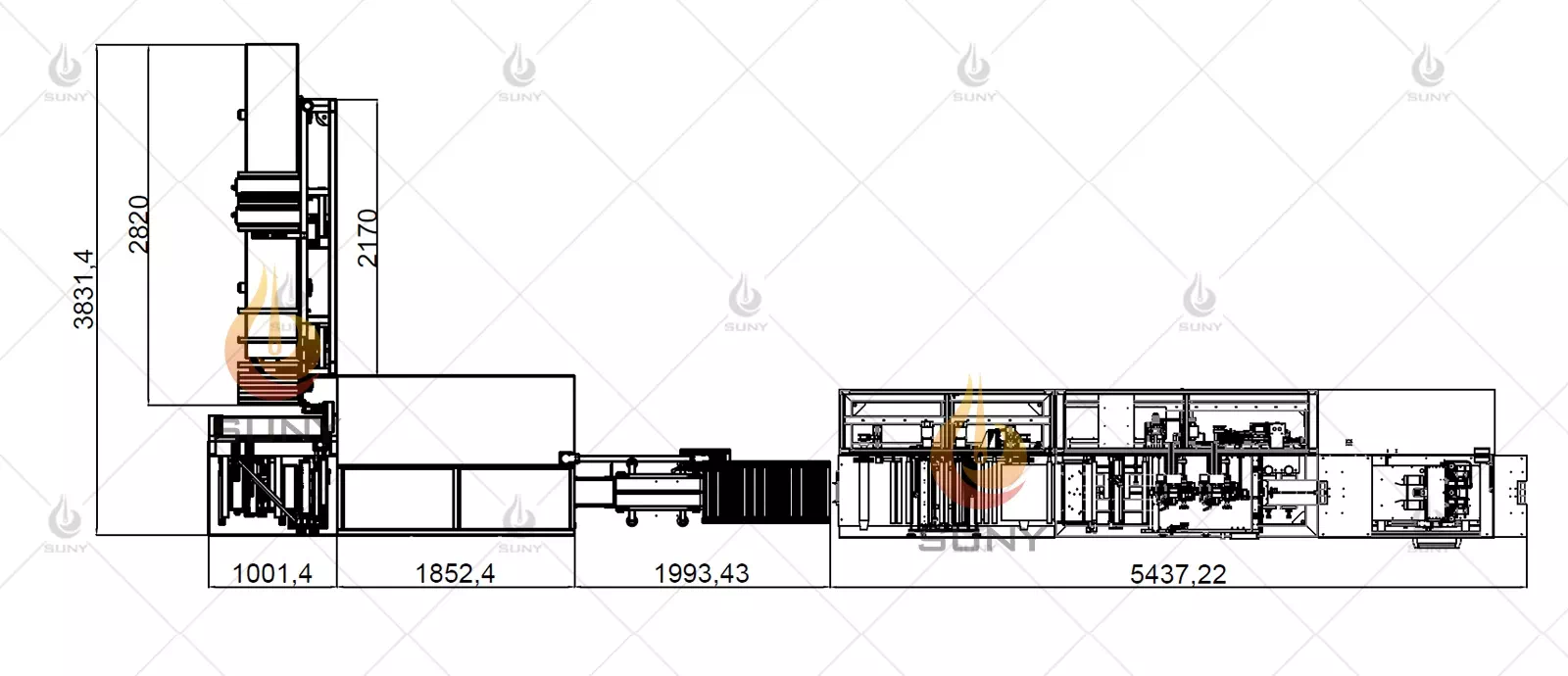

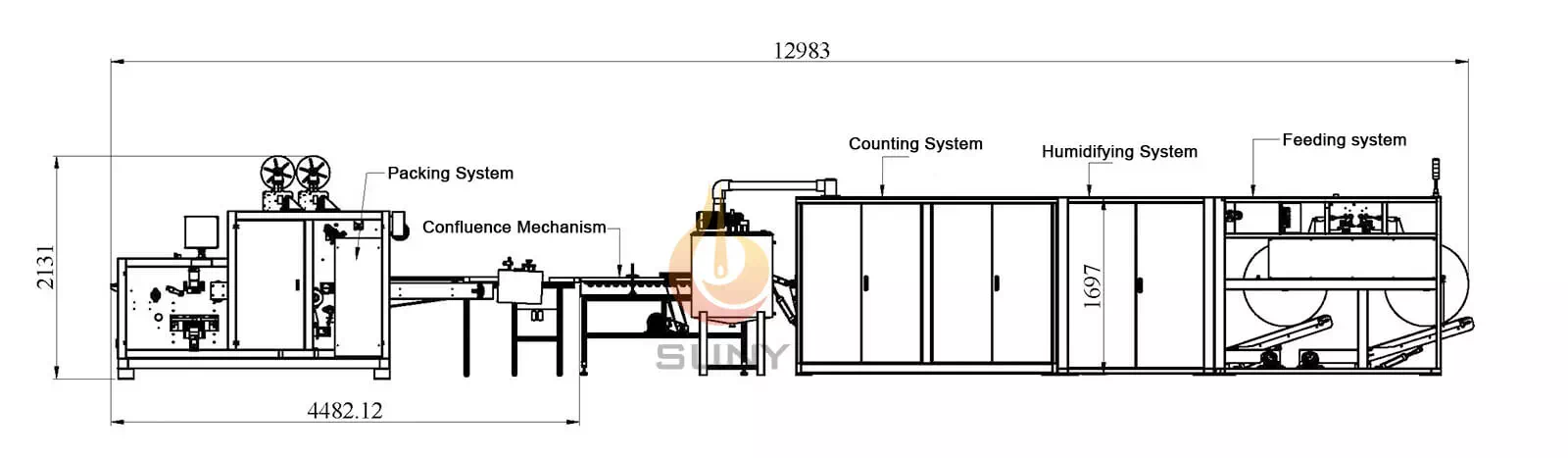

Layout of 5-30 PcsBag Portable Wet Wipes Production Line
Front view
Layout of SY-535 Portable Wet Wipes Making Machine
Top view
SYSTEM COMPOSITION

The SY535 wipes machine consists of wet wipes cutting, folding, adding liquid,stacking,bagging, sealing machine. The capping machine can beconfigured independently, and only1-2 people are needed to assist the supervisor.

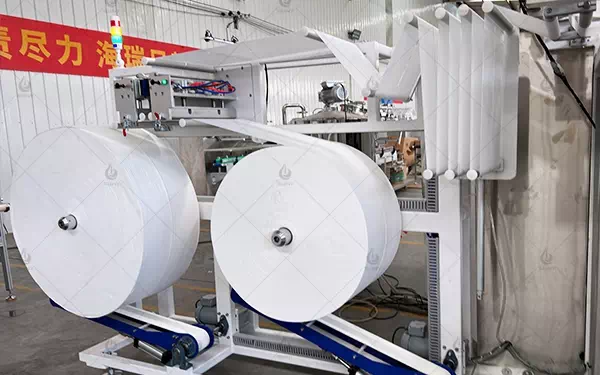

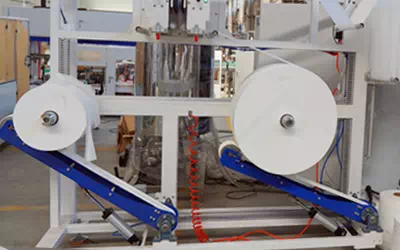

Automatic Connection
Automatic Connection

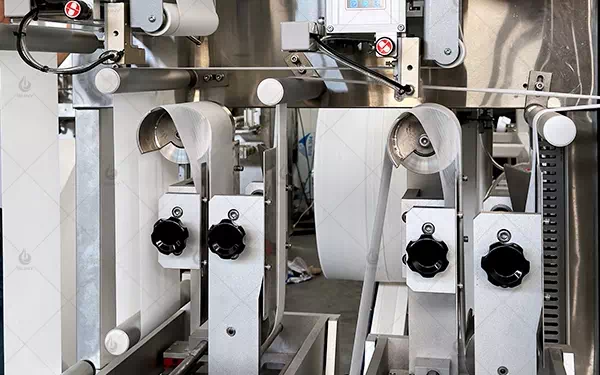

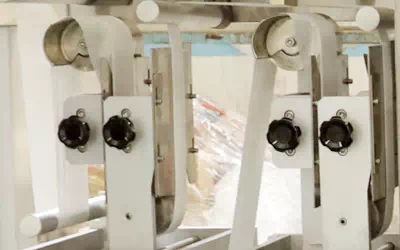

Longitudinal Folding
Longitudinal Folding

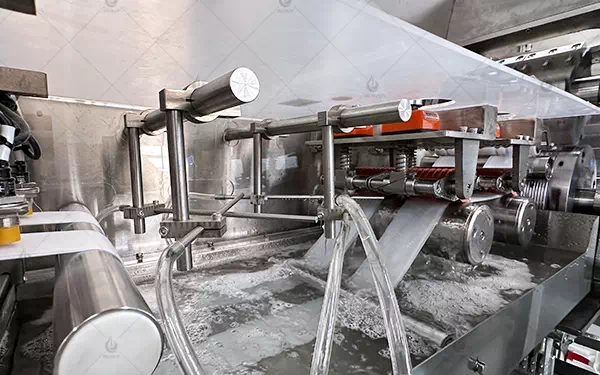

Humidifying System
Humidifying System

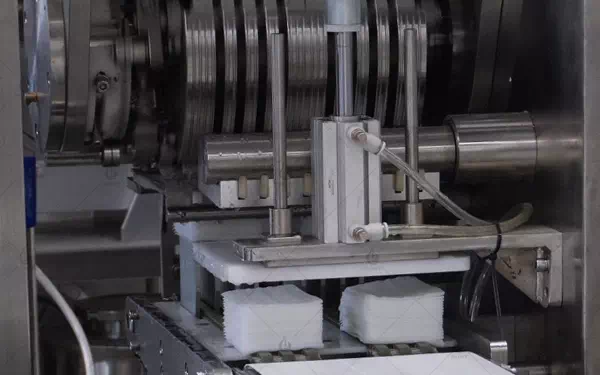

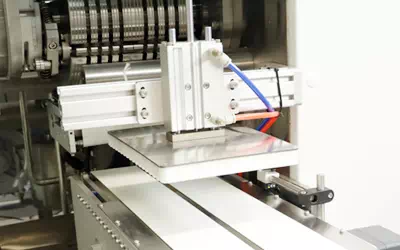

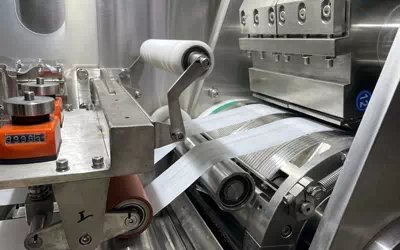

Cutting and Counting System
Cutting and Counting System

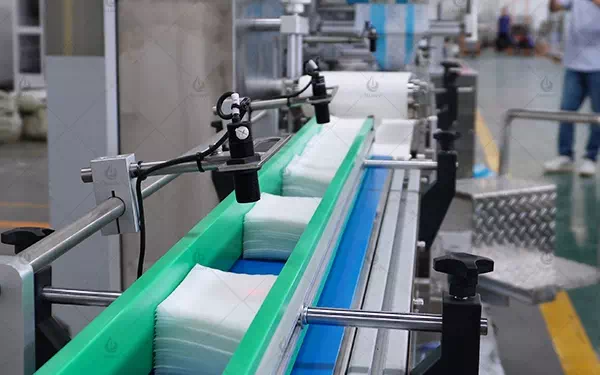

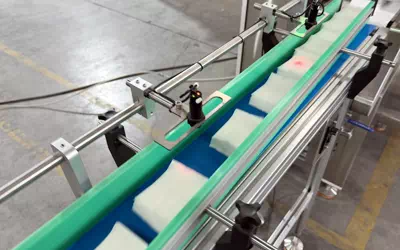

Feeding and Confluence Mechanism
Feeding and Confluence Mechanism

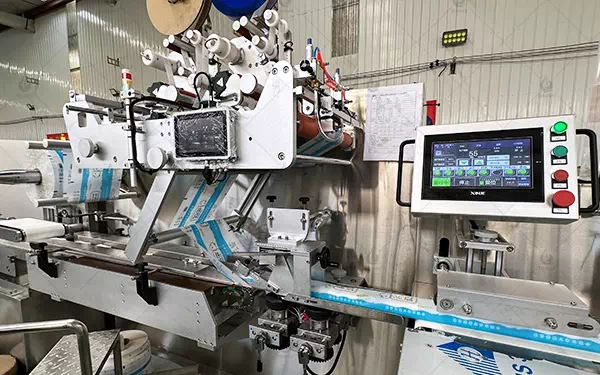

Packing System
Packing System
TECHNICAL PARAMETERS
Model SY-535
Folding method N type single pumping, C type single pumping
Wet Wipes Unfolded Size Length (100-180)*Width (90-200) mm
Wet Wipes Folded Size Length (100-180)*Width (90-110) mm
Speed 1400-1500 tablets/min or 90 packs/min
Total Power AC380V 50HZ/60HZ 18KW (Can be customized)
Gas Source 0.6MPA-0.8MPA Air consumption: 0.15m³/min
Material of Wet Wipes Spunlace non-woven fabric
Parent Roll Specification Maximum diameter: 1100mm, Width: (180-220) mm
Packaging Material Specification Diameter 350mm, maxwidth: 350 mm
Package Dimensions Length(150-230)*Width(100-120)*Height(20-80)mm
Sticker Size Standard 35-50mm(Can be customized)
Hole Size Standard 20-40mm(Can be customized)
Sticker Thickness 0.6mm-0.08mm
