Four Side Seal Single Wet Wipes Making Machine

Model: SY-350, 1 Pcs/Bag, Four Side Seal, Individually Packaged

The four side seal single piece wet wipes machine is suitable for the production various kind of four-side sealing wet wipes/tissue, alcohol swabs/pad.

  • Packaging speed: 60-120 pieces/minute

  • Packaging size: length 40-175mm and width 40-110mm ( Can be adjusted )

  • Edging form: “.”or “v”

PHOTOS OF SINGLE WET WIPES MACHINE

The single piece 4 side wet wipes making machine is easy to operate, with servo motor and PLC touch panel, which can adjust the packing temperature, packing speed and tissue length accordingly.

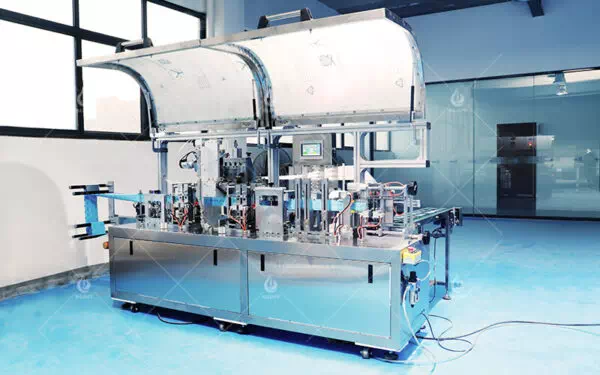

Single 4 Side Sealing Wet Wipes Machine

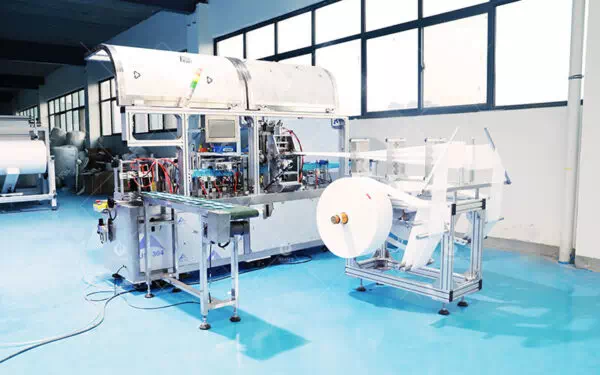

4 Side Sealing Wet Wipes Making Machine
FINAL PRODUCT

Width: 40-110mm; Length: 40-175mm
Edging form can be “.”or “v”
The 4 side seal wet towel machine can be used to produce four sides sealing packaging wet wipes, such as: makeup removal wipes, refreshing wipes, airline wipes, hotel/restaurant wipes and so on.

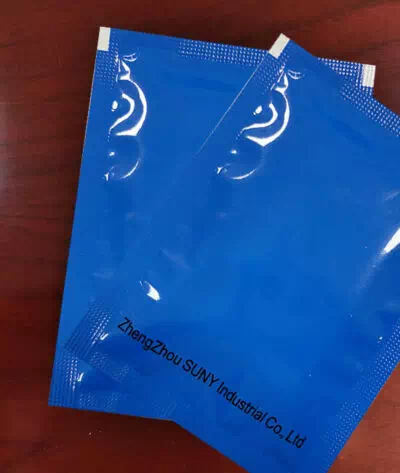

Makeup removal wipes
Makeup Removal Wipes

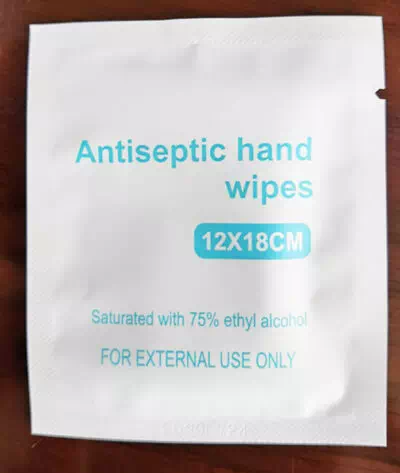

Antiseptic hand wipes
Antiseptic Hand Wipes

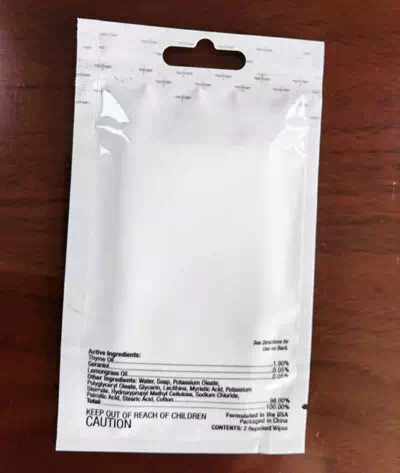

Care Wipes
Care Wipes

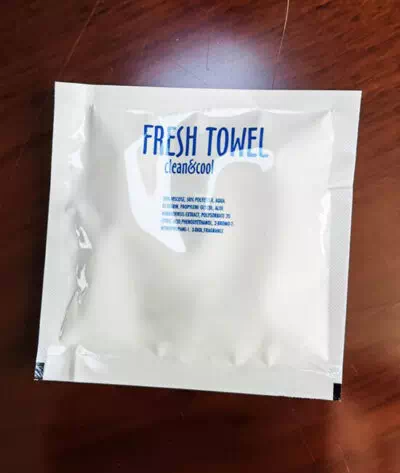

Refreshing wipes
Refreshing Wipes
EQUIPMENT STRUCTURE

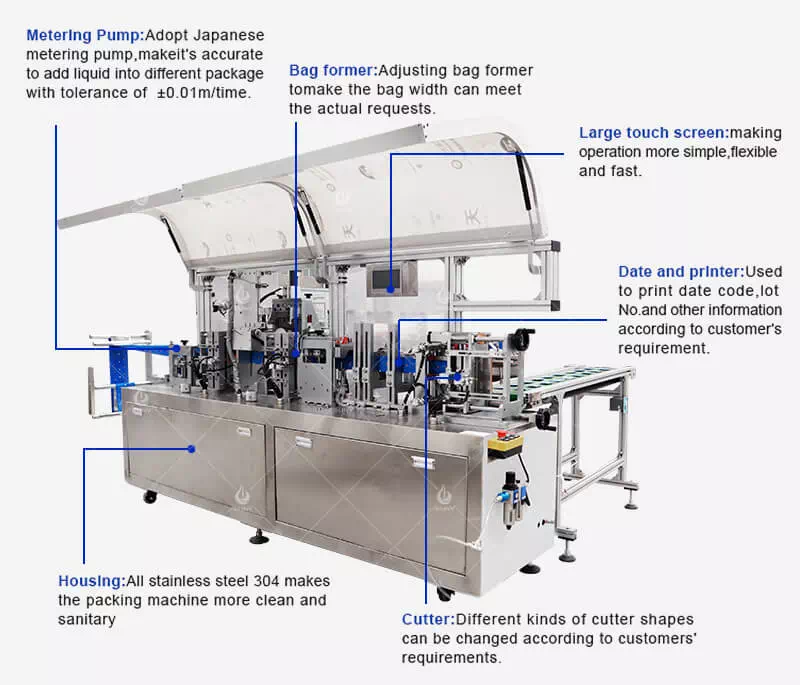

Equipment Structure Four Side Sealing Single Wet Wipes Making Machine

  • Fold and draw of film: Fold the film and forming it into bag, the sensor make it more exactly ,no blank edge and fault forming.

  • Wet wipes folding shelf: Fold non-woven fabric according to customer’s requirements (Max 10 folding vertical, and 4 folding horizontal).

  • Cutting non-woven fabric: Cut according to the size required by the customer.

  • Fold and fill: Servo control fold into the bag and add liquid to the bag (the part contacting the material is 316 stainless steel)，Metering pump imported from Japan，accuracy 10.01ml.

  • Adjustable mould，Sealing: Bag mouth sealing (hot sealing),The user can change the steel letters to control the Date and codes print on the products the tear mouth have two types for select “V or “-“.

  • Touch screen: The touch screen can be made in your local language(so you can your staff can operate it easily).

SYSTEM COMPOSITION

Structure: raw material loading device, tension device, folding device, forming device, bottom sealing device, online wetting system, automatic counting device, code printing device, packing device for finished products.

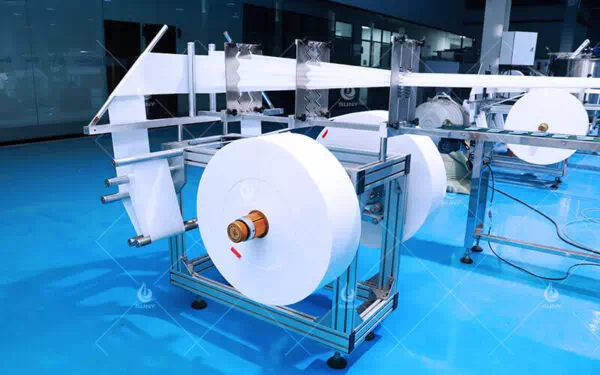

Wet Wipes Folding Shelf
Wet Wipes Folding Shelf

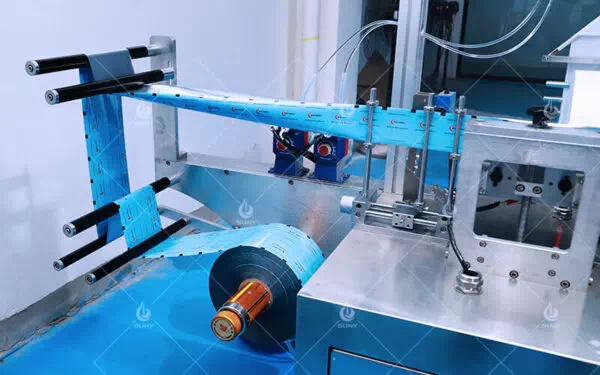

Fold and Draw of Film
Fold and Draw of Film

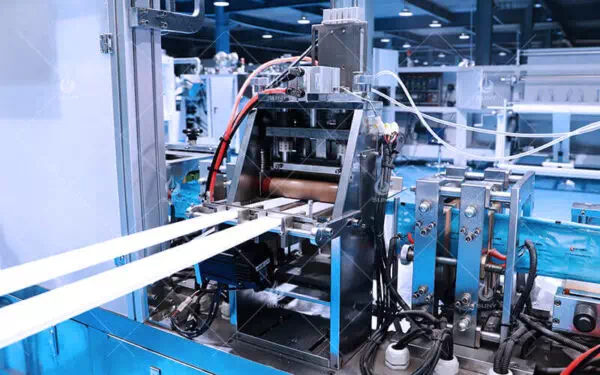

Paper Feeding Station
Paper Feeding Station

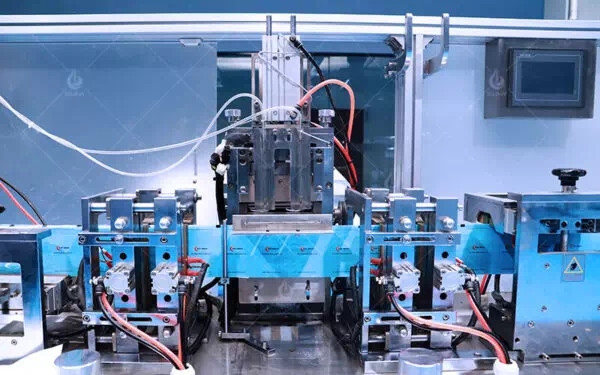

Fold and Fill
Fold and Fill

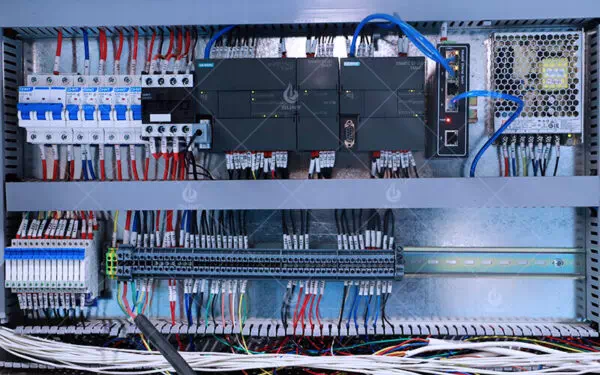

Electrical Components
Electrical Components

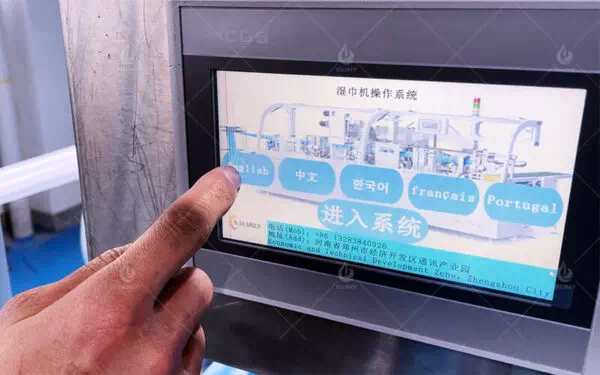

PLC Control
PLC Control
TECHNICAL PARAMETERS
Model SY-350
Folding method Pair fold (Optional three fold)
Wet Wipes Unfolded Size Length (150-210)*Width (100-180) mm
Wet Wipes Folded Size Length (30-145)*Width (30-75) mm
Speed 40-120 packs/min (Depends on folding size, folding method and packaging film)
Total Power AC220V 50HZ/60HZ 9KW (Can be customized)
Gas Source 0.6MPA-0.8MPA Air consumption: 0.1m³/min
Material of Wet Wipes Spunlace non-woven fabric
Parent Roll Specification Maximum diameter: 1100mm, Width: (100-210) mm
Packaging Material Specification Diameter 350mm, width: (100-340) mm
Package Dimensions L(50-170)*W(50-100) mm
Weight 1200 Kg
Dimension L3300×W2300×H1600mm
